Road Base: What You Need to Know

Road base, also called aggregate base course (ABC), is the hardworking middle layer between natural ground and whatever surface goes on top, whether asphalt, concrete, pavers, or gravel. It’s not just filler; it’s structural. A properly compacted road base spreads the weight of vehicles, buildings, and foot traffic evenly across the subgrade, reducing stress and helping to prevent cracks, ruts, and other failures.

If you’re building a driveway, access road, equipment pad, or prepping for a slab foundation, road base gives it strength and staying power.

What It’s Made Of: Not Just “Crushed Rock and Sand”

“1 inch down to fines” is a popular shorthand, but the real makeup of road base is more technical. This mix is all about structure and performance. Here’s what goes into it:

Common Material Sources:

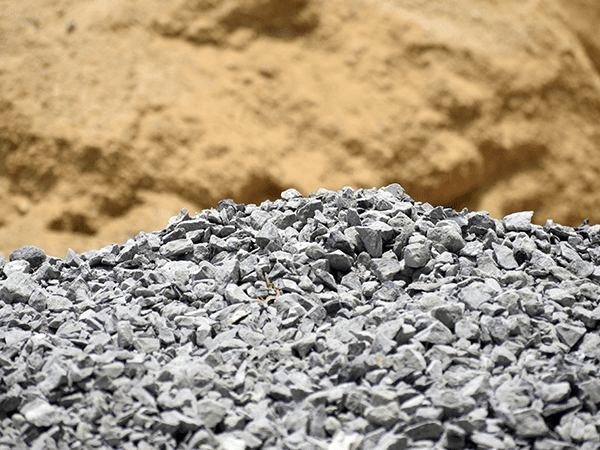

• Crushed Stone: Like limestone, granite, basalt, or sandstone. Limestone is widely used for its availability and compaction ability, but granite or basalt often brings greater long-term durability.
• Natural Sand & Gravel: Used after screening and crushing to refine gradation.
• Recycled Aggregates: Crushed concrete, reclaimed asphalt, and slag are gaining ground. They’re budget-friendly and eco-friendly, but they still must meet spec.

Local supply and engineering demands often dictate material selection. That’s why the same “road base” may look slightly different from Texas to Colorado, but its job stays the same.

Gradation Is Everything

In road base, how the pieces fit together is everything. The goal is maximum density and minimum voids.

Two Key Types:

• Dense-Graded: Has everything from coarse chunks to fine particles, which pack tightly together. Great for strength and stability.
• Open-Graded: Mostly larger particles with almost no fines. These are used for drainage, not support, because they don’t compact tightly.

Dense-graded road base is the strong, silent type. Once compacted, it locks together tightly and doesn’t move, so it’s used under driveways, roads, and parking pads.

Why Road Base Works: Interlock, Density, and Load Control

The strength of a base layer isn’t just in the rocks- it’s in how they fit and how well they’re compacted.

• Interlock: Crushed, angular stones with sharp faces lock together when compacted. Smooth gravel? Not so much.
• Compaction: When compacted at the proper moisture level, particles pack into a dense layer that resists movement and efficiently spreads loads.
• Load Distribution: Road base spreads the weight from the surface down into the soil, so your subgrade doesn’t get squashed or rutted under pressure.

The stiffer the base, the better it handles load, and the longer your project lasts.

Where Road Base Is Used: Not Just for Roads

Road base plays a key role in all kinds of builds:

• Driveways: As the main base, under asphalt or loose gravel.
• Roads & Access Paths: Whether private lanes or rural roads.
• Parking Areas: For cars, trucks, RVs, or heavy equipment.
• Under Slabs: Like patios, garages, or foundations.
• Walkways: Where you need structure before laying pavers or gravel.
• Retaining Wall Backfill: Helps with drainage and support.
• Drainage Layers: Using an open-graded base where water needs to flow.
• Shoulders & Subbases: Adds lateral strength and frost resistance.

Just ensure you’re using the right type and gradation for the job. One-size-fits-all doesn’t cut it in base material.

The Real Benefits of Road Base (When It’s Done Right)

Serious Compaction

When the dense-graded base is compacted at the right moisture content, it forms a stiff, interlocked layer that can carry much weight.

Structural Stability

That interlocked matrix doesn’t shift or sag easily, especially under driveways and vehicle pads.

Cost-Conscious Foundation

It’s often cheaper than complete paving and critical for supporting pavement, so you get more bang for your buck long-term.

Local & Recycled Options

Using recycled concrete or asphalt (if it meets quality standards) is budget-smart and environmentally responsible.

But Let’s Be Clear:

• Standard road base doesn’t drain well. If you need drainage, go open-graded.
• It’s not zero-maintenance. If road base is your final surface (like on gravel driveways), you’ll need occasional raking, topping off, and dust control.
• Poor compaction means poor performance. There is no shortcut here- get it tight, or it won’t hold up.

How to Install Road Base (Without Regret Later)

Proper installation is what makes or breaks a base. Here’s how to do it right:

1. Excavate: Remove topsoil and organic material. Your base needs to sit on a firm, well-graded subgrade.
2. Know Your Thickness: 4–8 inches is common for driveways. 10–12 inches isn’t unusual for heavier loads or weak soil.
3. Spread in Lifts: Each layer should be no more than 3–6 inches thick. Compact each one before adding more.
4. Water and Compact: Lightly moisten to optimal moisture (usually tested in a lab), then compact until dense. Depending on the job size, use rollers or plate compactors.
5. Grade and Top: Finish with the proper slope for drainage and, if needed, a surface layer (gravel, asphalt, etc.).

Common Mistakes to Avoid

• Skipping compaction (or doing it dry)
• Laying based on a soft or muddy subgrade
• Overwatering during compaction
• Using unspecified or contaminated material
• Ignoring proper thickness or moisture range
• It is not layering correctly; it is too thick and won’t compact evenly.

Specs Matter: It’s Not “Just Rock”

Good road base follows strict specs, usually from AASHTO or your state DOT. Those include:

• Gradation: Particle sizes that fit tight specs
• Acceptable Content: Controlled for compaction and frost protection
• Durability: Measured with soundness and abrasion tests
• Plasticity Index: How much the fines behave like clay (lower is better)

Use spec-grade material to build anything beyond a basic gravel path. No exceptions.

Maintenance: What to Expect Long-Term

If it’s under pavement:

• Minimal maintenance unless the pavement itself fails.

If it’s the top layer (like a gravel driveway):

• Regarding: A few times per year
• Adding material: Every 1–2 years, depending on traffic
• Dust control: Especially in dry seasons
• Drainage upkeep: Ditch clearing and slope maintenance
• Weed control: Optional but helpful
• Optional re-compaction: After heavy rains or winter freeze-thaw

Using a geotextile fabric or geogrid at installation can save headaches by keeping the base in place and reducing rutting.

Final Thoughts

Road base isn’t a one-size-fits-all mix; it’s engineered. Choosing the right type, following proper installation steps, and maintaining it smartly make a gravel driveway hold firm or a new slab foundation stay level for years. Whether you’re a DIY homeowner or managing a build site, investing time in your base layer is the best decision for long-term durability.
